Semester 1 · Sumobot

Week 1: Actuators

Open to everyone
6 / 22
Contents

Step 1: Powering on the VirtualBench

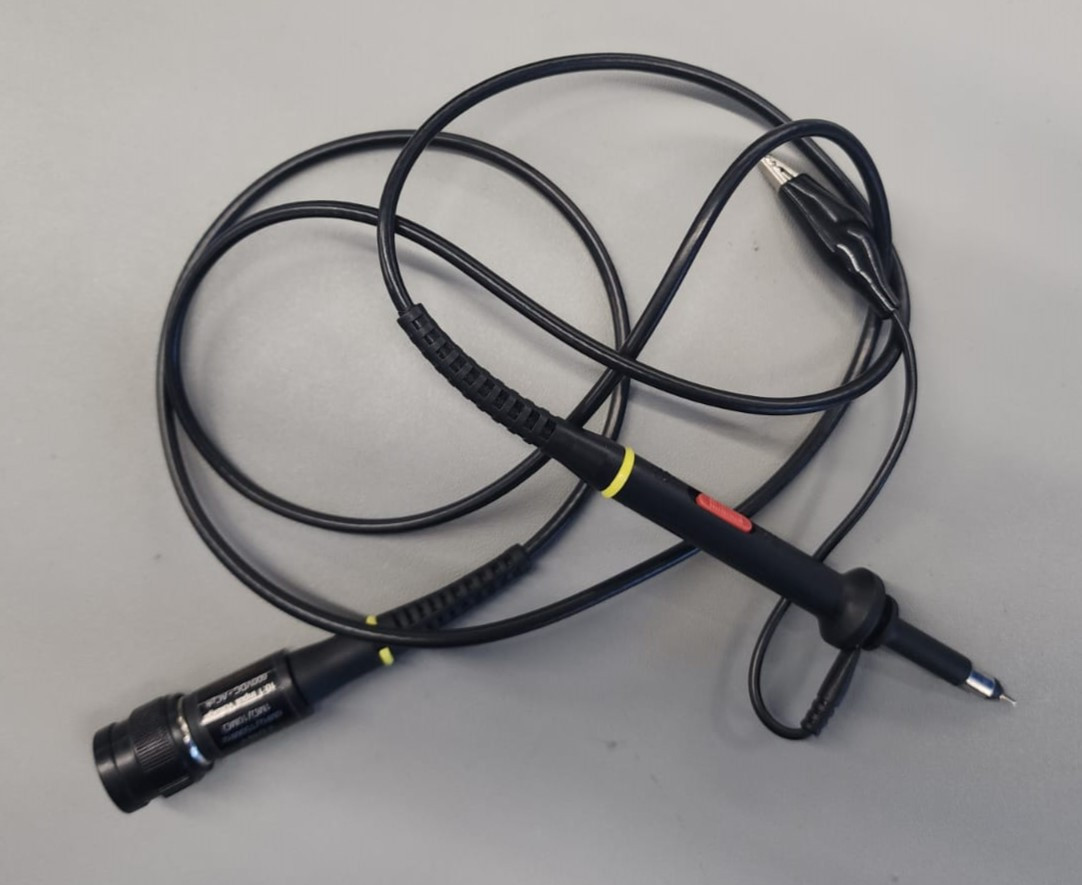

Oscilloscope probe and its ground clip
Oscilloscope probe and its ground clipEnlarge image

Add a probe to channel 1 of the oscilloscope, and one to the function generator:

Connecting the oscilloscope and function generator probesOpen video

Make sure the slider on the probe is set to 1x. If it's set to 10x, the function generator may do odd things. We'll use the probe connected to FGEN later, for now just use channel 1.
